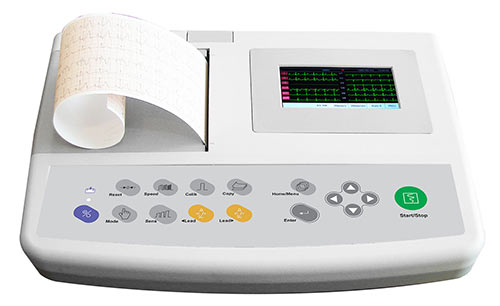

Professional design for using

Color displaying and 4.3 touch screen

12 leads ECG

Different modes of recording (Manual/Auto)

Data storage of 100 records

Input Channel Simultaneous acquisition of all 12 leads/ Rhythm Lead
Standard leads acquired I,II,III,V1,V2,V3,V4,V5,V6,aVR,aVF,aVL
Sensitivity Selection 2.5, 5, 10, 20 mm/mv
Filters Drift: On or Off
HUM: 50 or 60 HZ, off
Low pass: 25, 35, 75 HZ, off
Calibration 1mV
Dynamic Range ±5 mV
Leakage Current < 10 μA
CMRR > 98 dB
Time Constant 3.2 sec.
Frequency Response 0.05-150 Hz
Protection Defibrillator and Electro surgery
ECG Storage
Internal Memory Up to 100 Records
Display TFT COLOR, 4.3”
Resolution 480 ´ 272
Operation Method Membrane Keys and Touch
Print Method Thermal dot line printing
Dots per line 832 dots
Resolution 8 dots/mm
Paper Speed 6.25, 12.5, 25, 50 mm/s
Paper Width 110mm
Print Width 104mm
Printed data 12 Lead ECG Waveforms HR Value, Patient Information, Hospital/ward, system model, software version, date and time, paper speed, sensitivity, filter
Recording Mode Auto, Manual, Periodic
Recording Format Auto 1+1, Auto 3+1, Auto 6, Manual 1+1, Manual 3, Manual 3+1, Manual 6 and Rhythm
Classification Class I, Type CF defibrillation-proof applied part
Standards IEC60601-1, IEC60601-1-2, IEC 60601-2-25,

IEC 60601-2-51, ANSI/AAMI EC-11

Temperature Operating: 5 to 40 °C
Storage: -20 to 60 °C
Humidity 20-90 % (No condensing)
Altitude -200 to 3000 m
AC Power 90-240 VAC, 50/60 Hz
Internal Rechargeable Battery Lithium Polymer 11.1V, 4.5AH (Optional)
Sealed Lead Acid, 12V, 3.3AH
Dimension 290mm (W) x 70mm (H) x 350mm (L)
Weight Approx. 2.7 Kg
